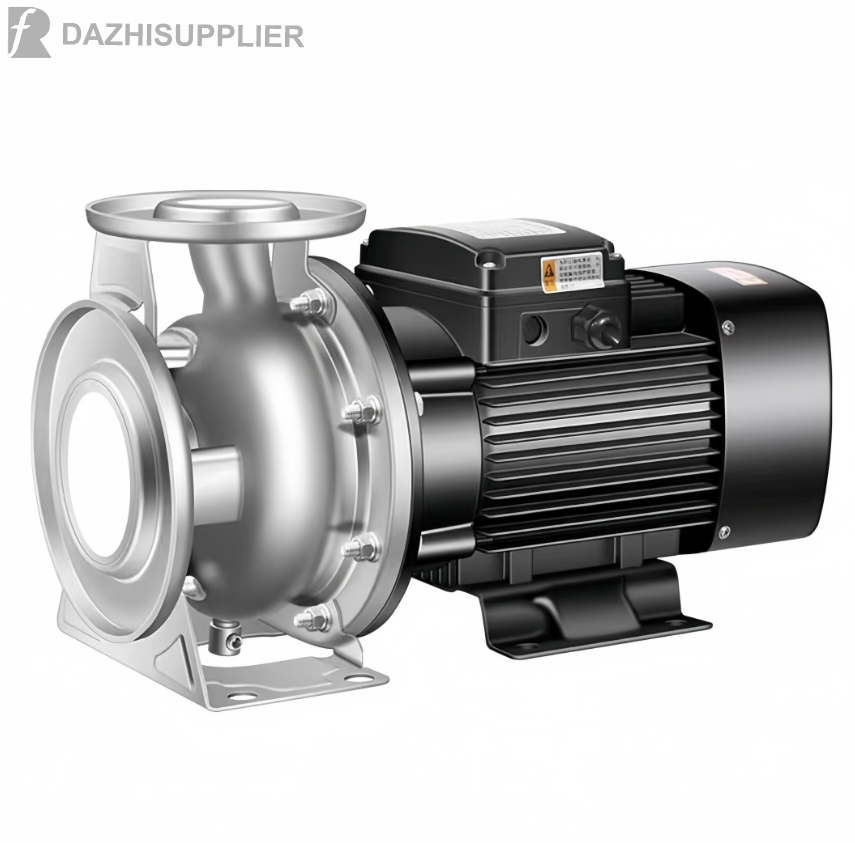

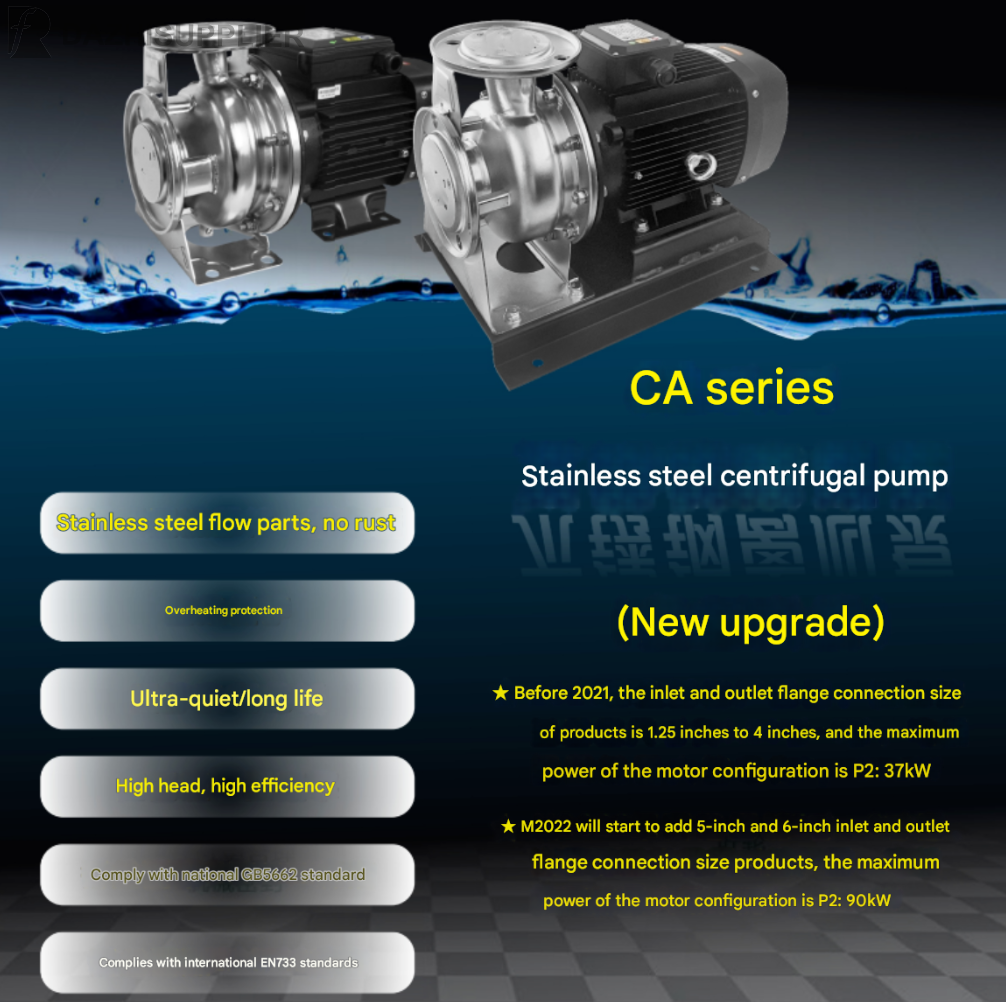

CA125 Series - CA150 Series

Product Features:Thermal

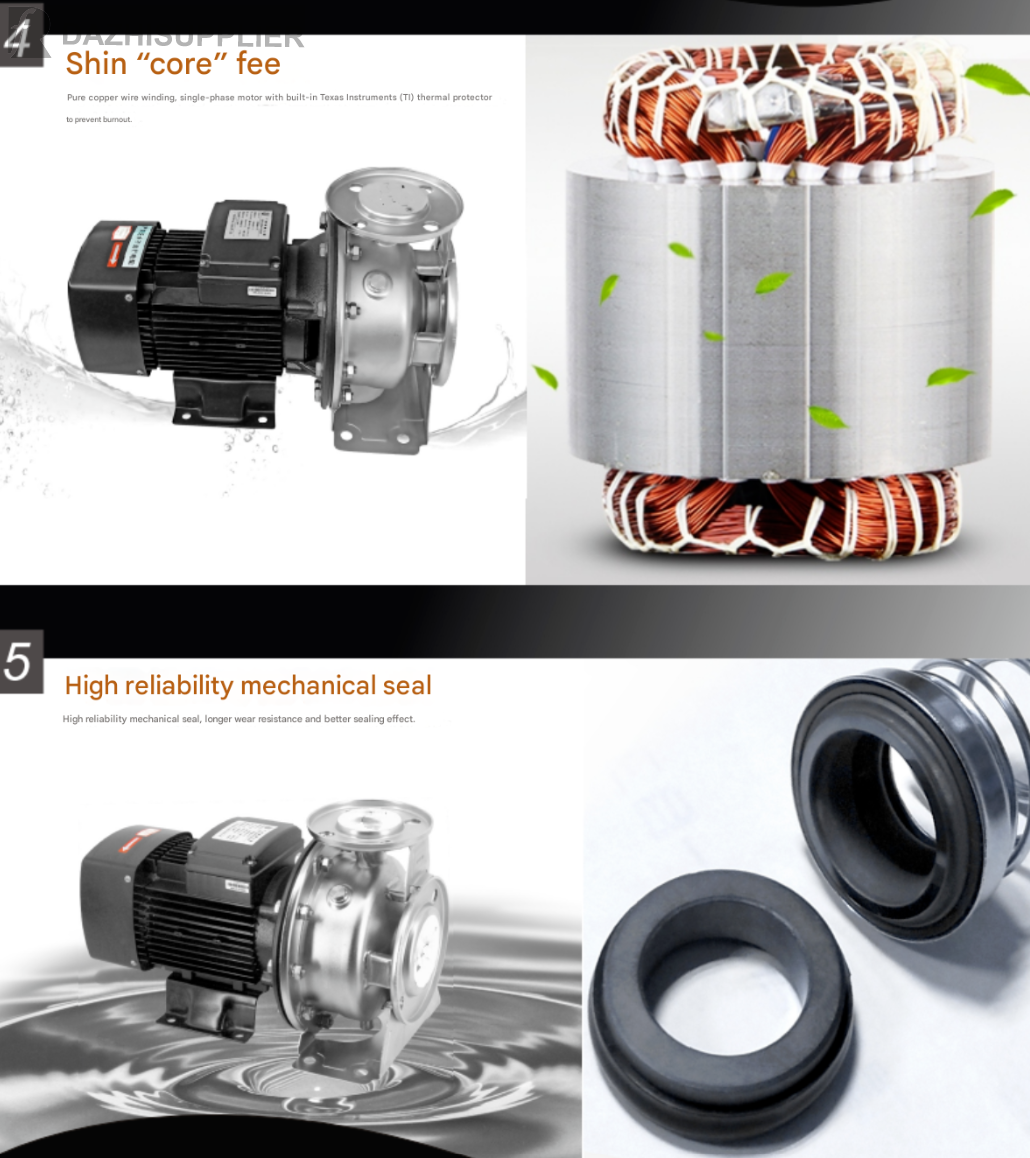

Protector: with thermal protector (single-phase motor)
Insulation Class: Class F
Protection Level: IP55

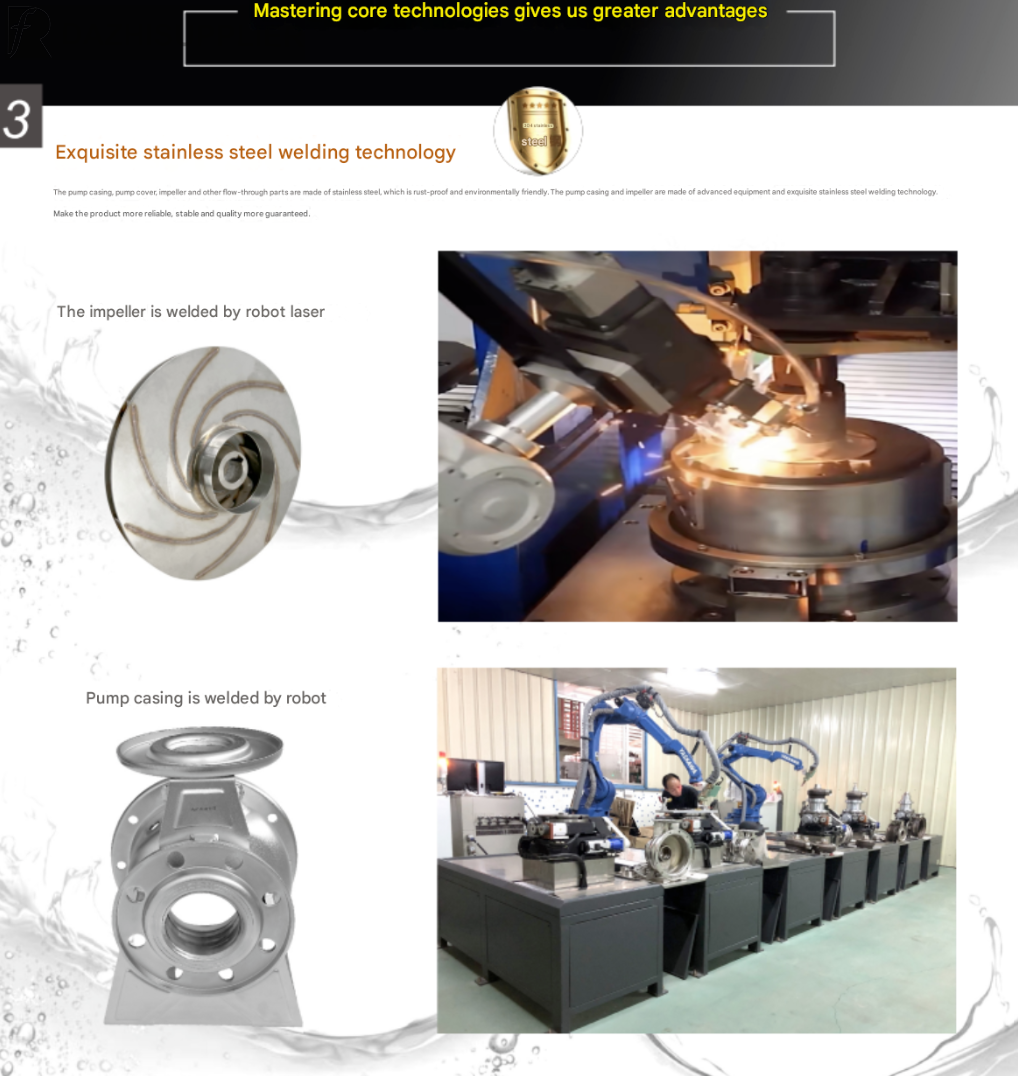

Middle Section and Impeller Material: Stainless Steel

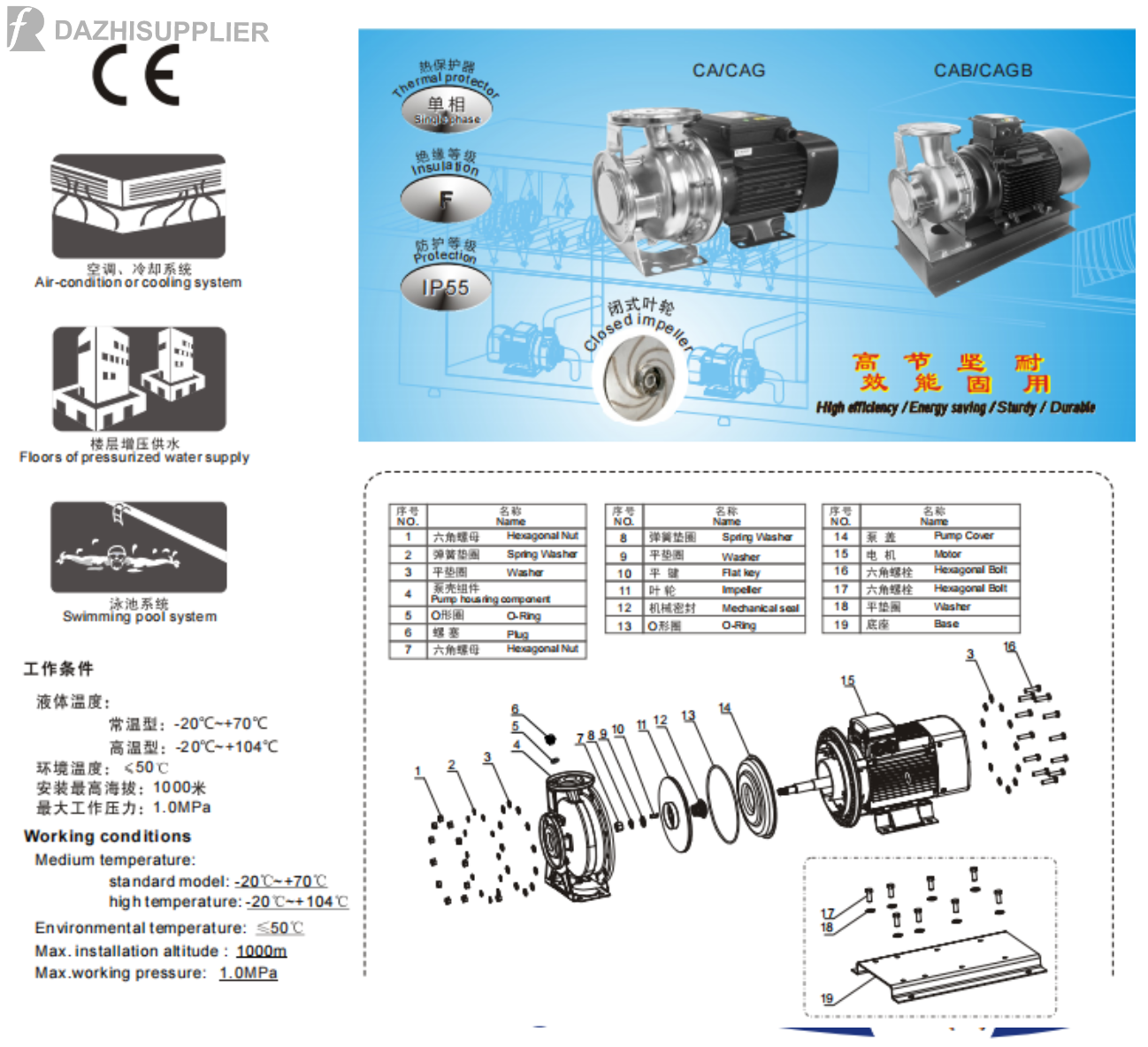

Operating Conditions:
Medium Temperature:
Low Temperature Type (-20~+70℃)
Normal Temperature Type (+15~+70℃)
High Temperature Type (+70~+104℃)
Ambient Temperature: ≤50℃
Maximum Operating Pressure: 1.0MPa

Brand: dazhi

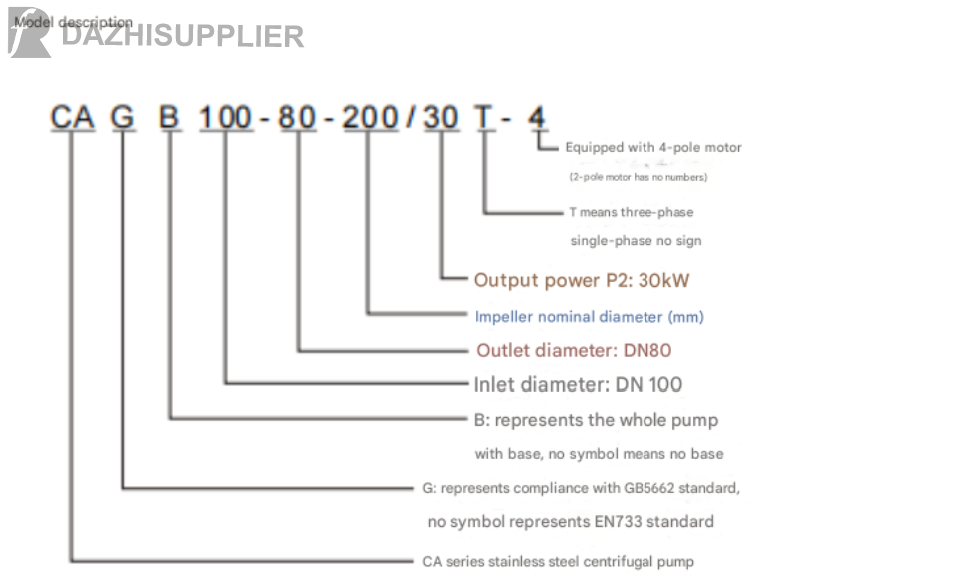

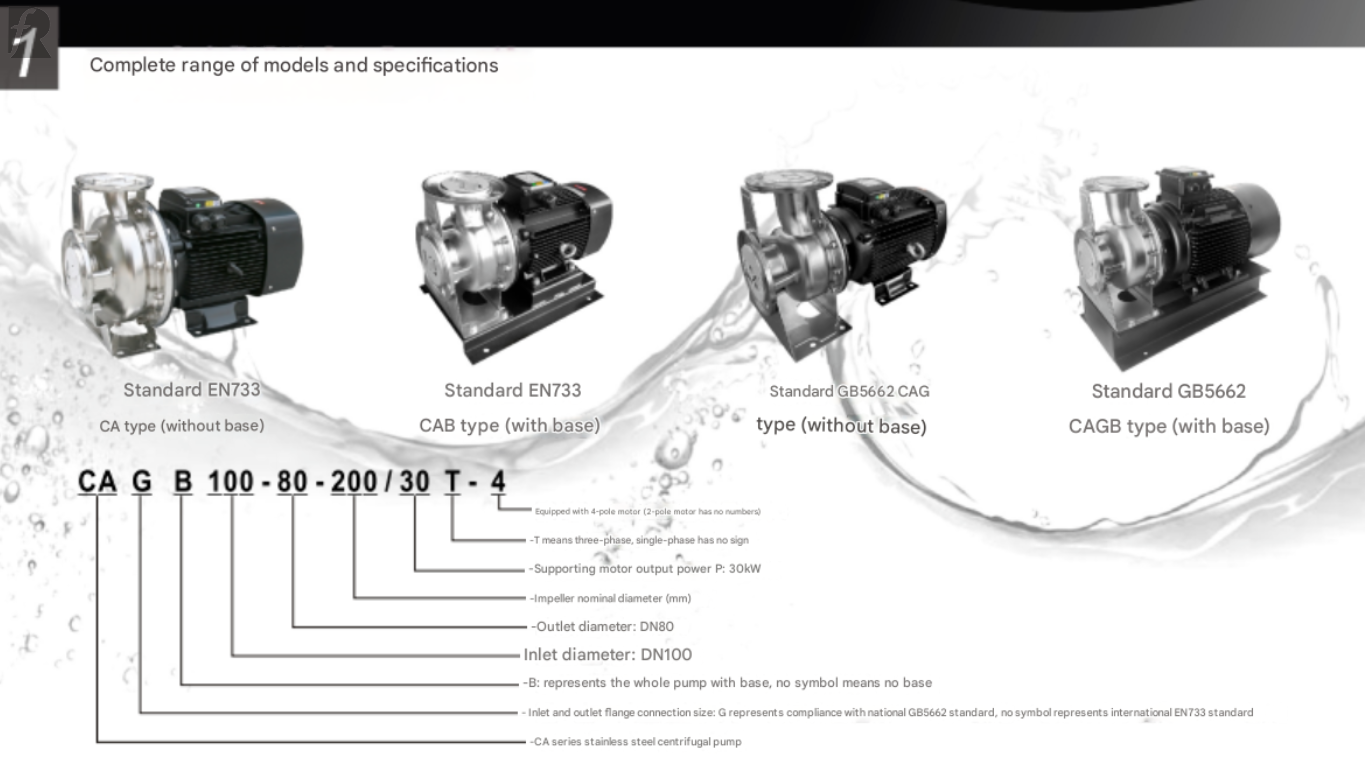

Model: CA125 Series - CA150 Series

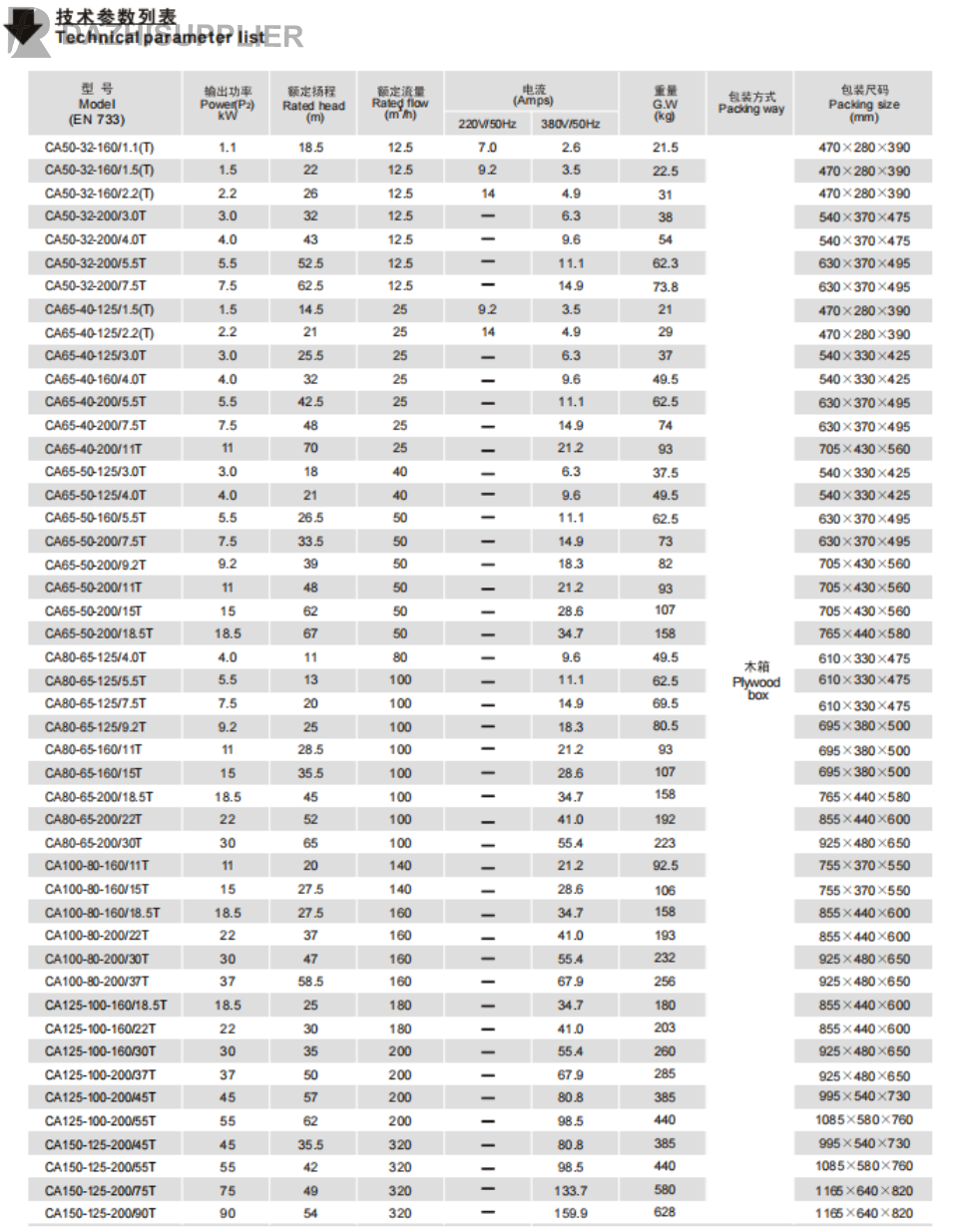

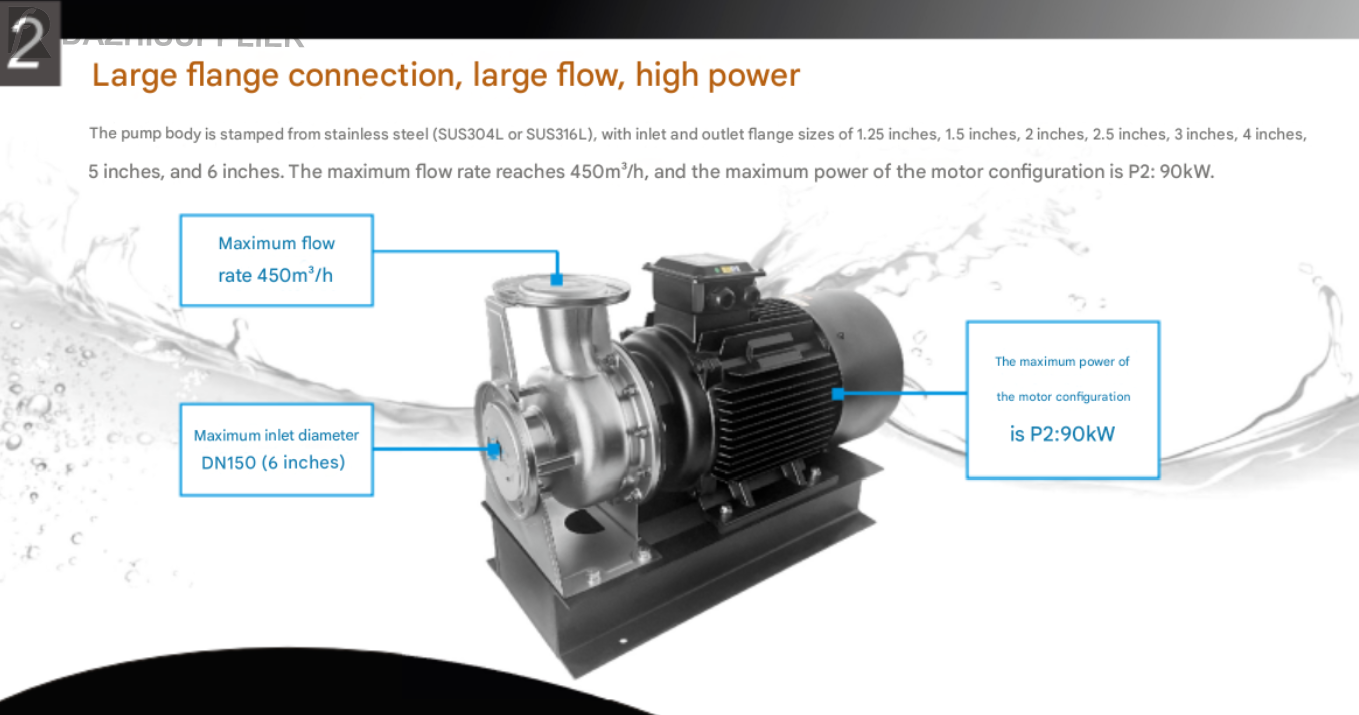

Output Power: 18kw-90kw
Power Supply Parameters: 380v / 50Hz

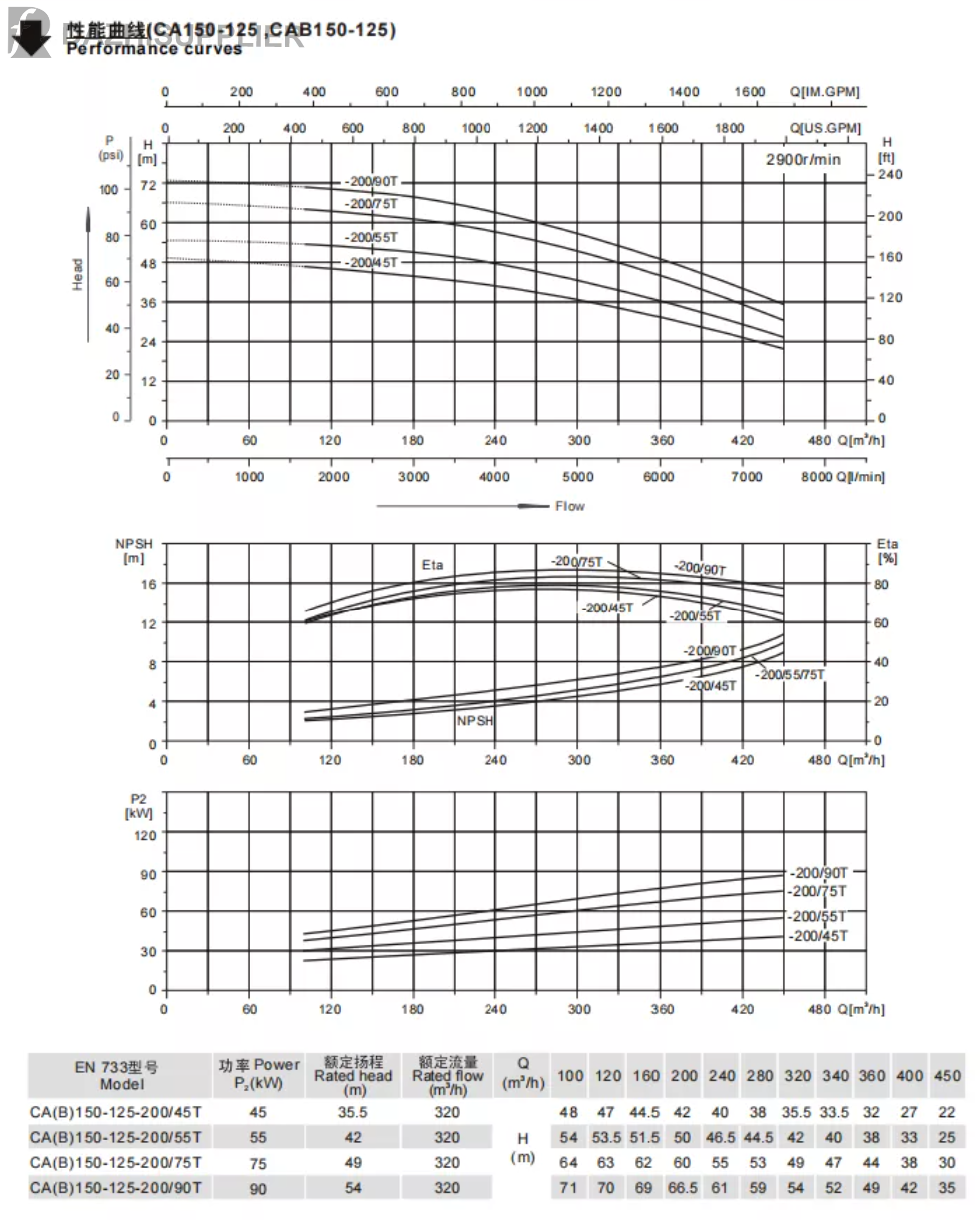

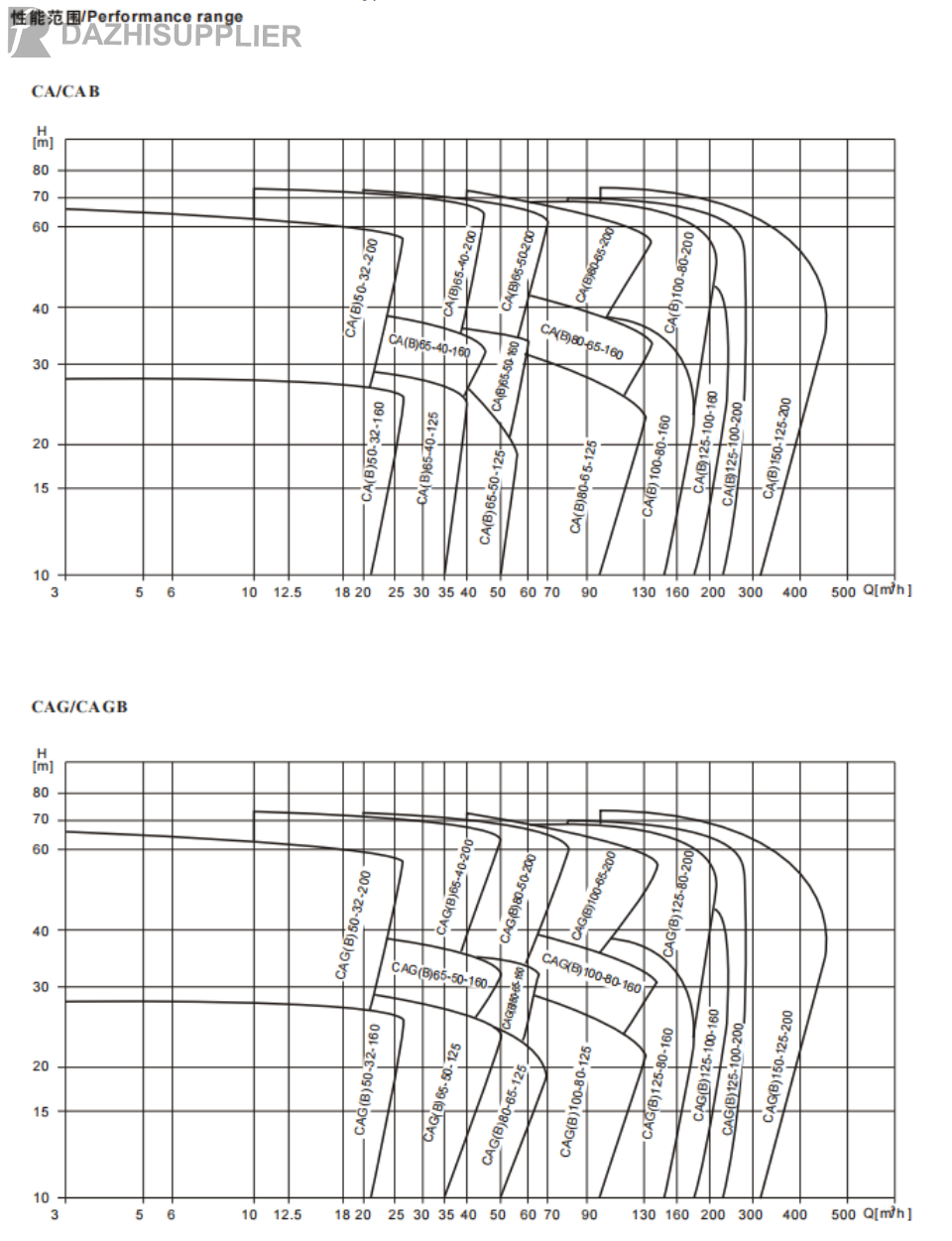

Rated Head: 23m-58m
Rated Flow: 200m³/h-320m³/h
