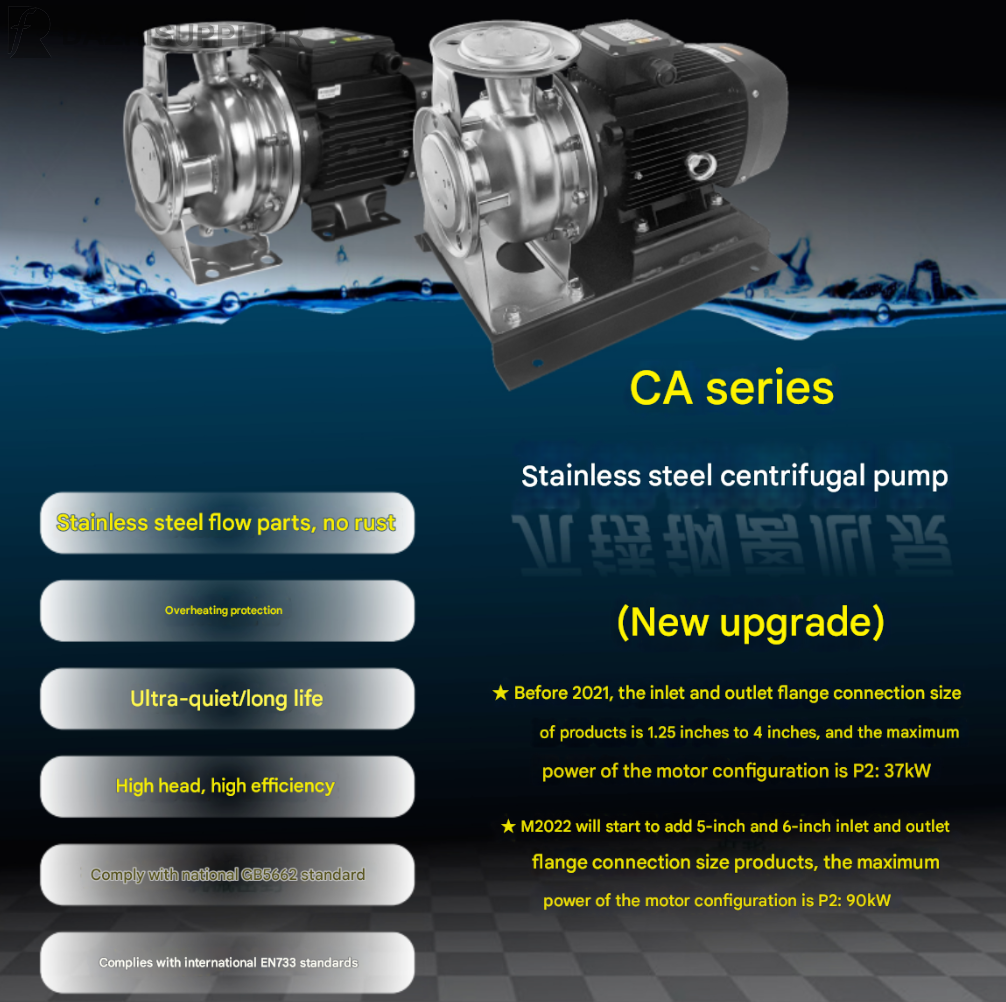

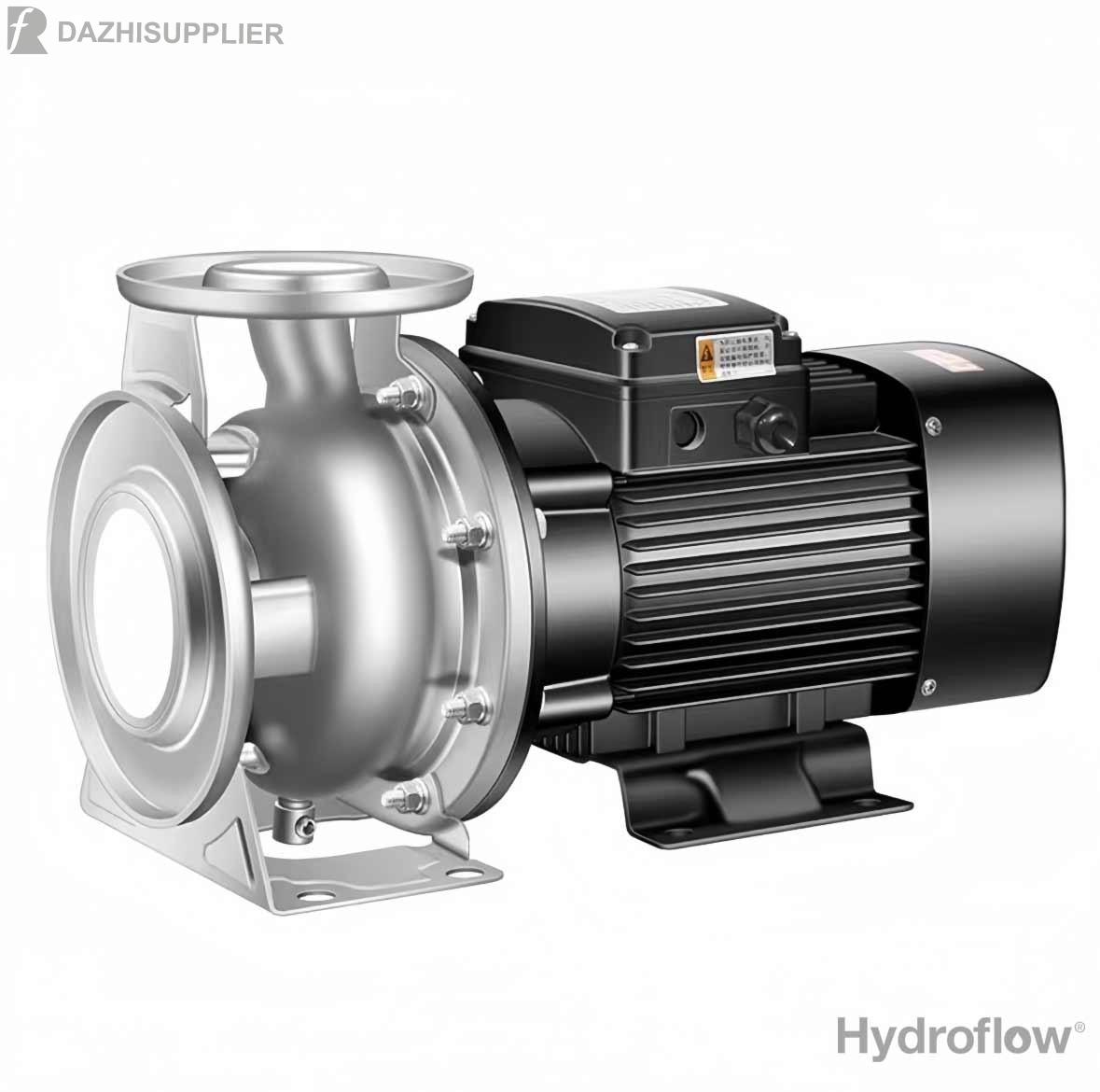

CA100 Series

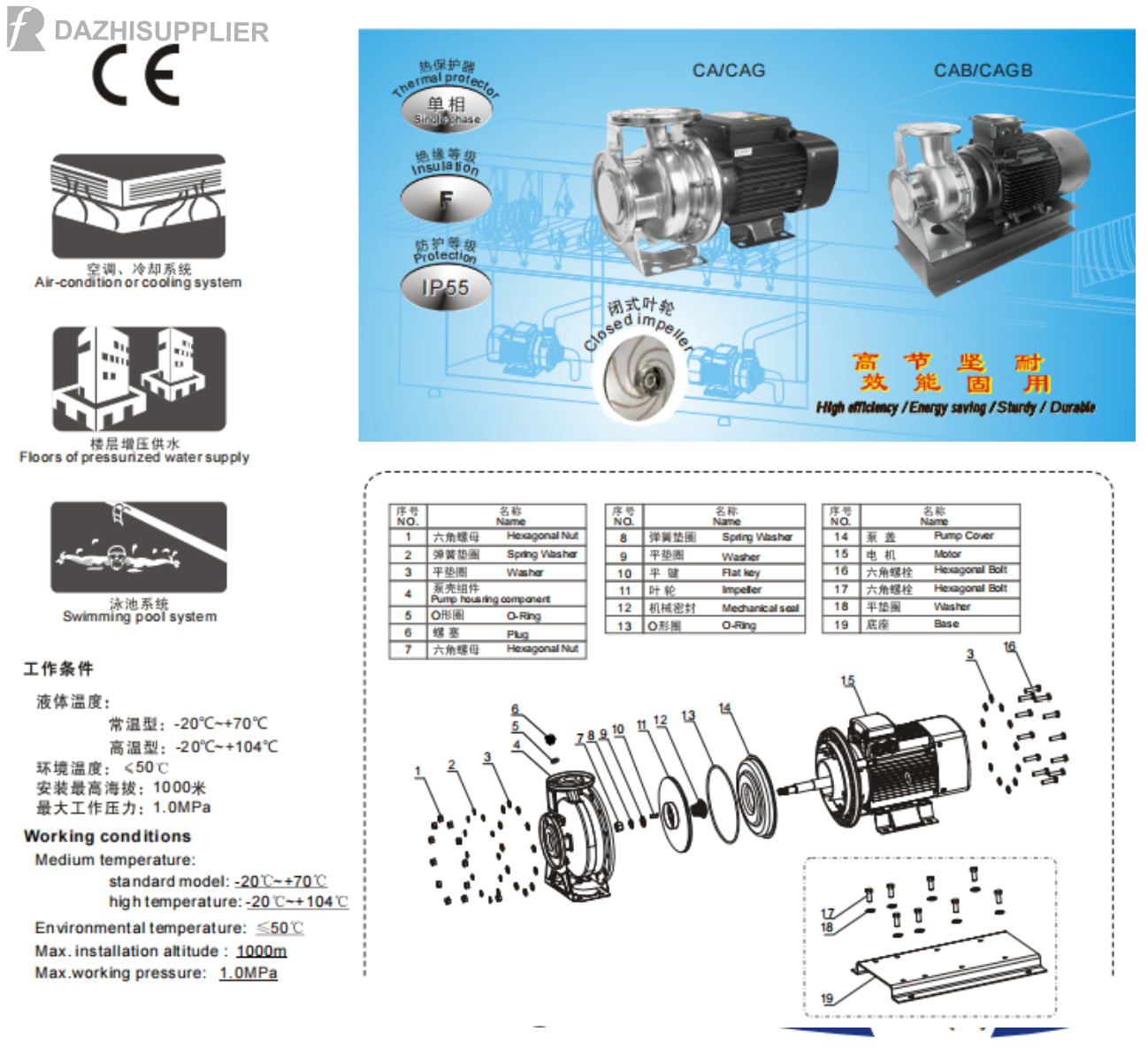

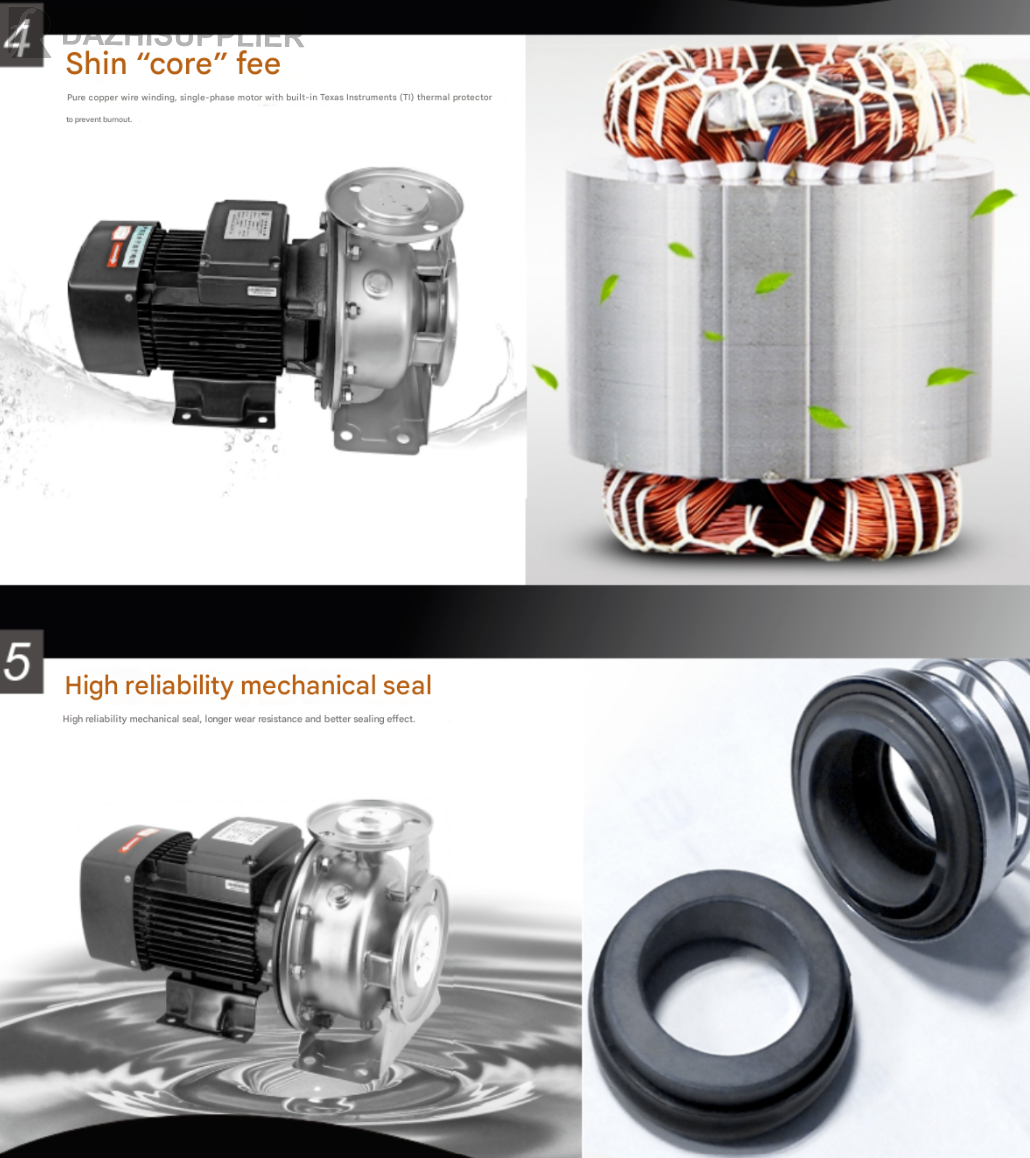

Product Features:Thermal
Protector: with thermal protector (single-phase motor)
Insulation Class: Class F
Protection Level: IP55

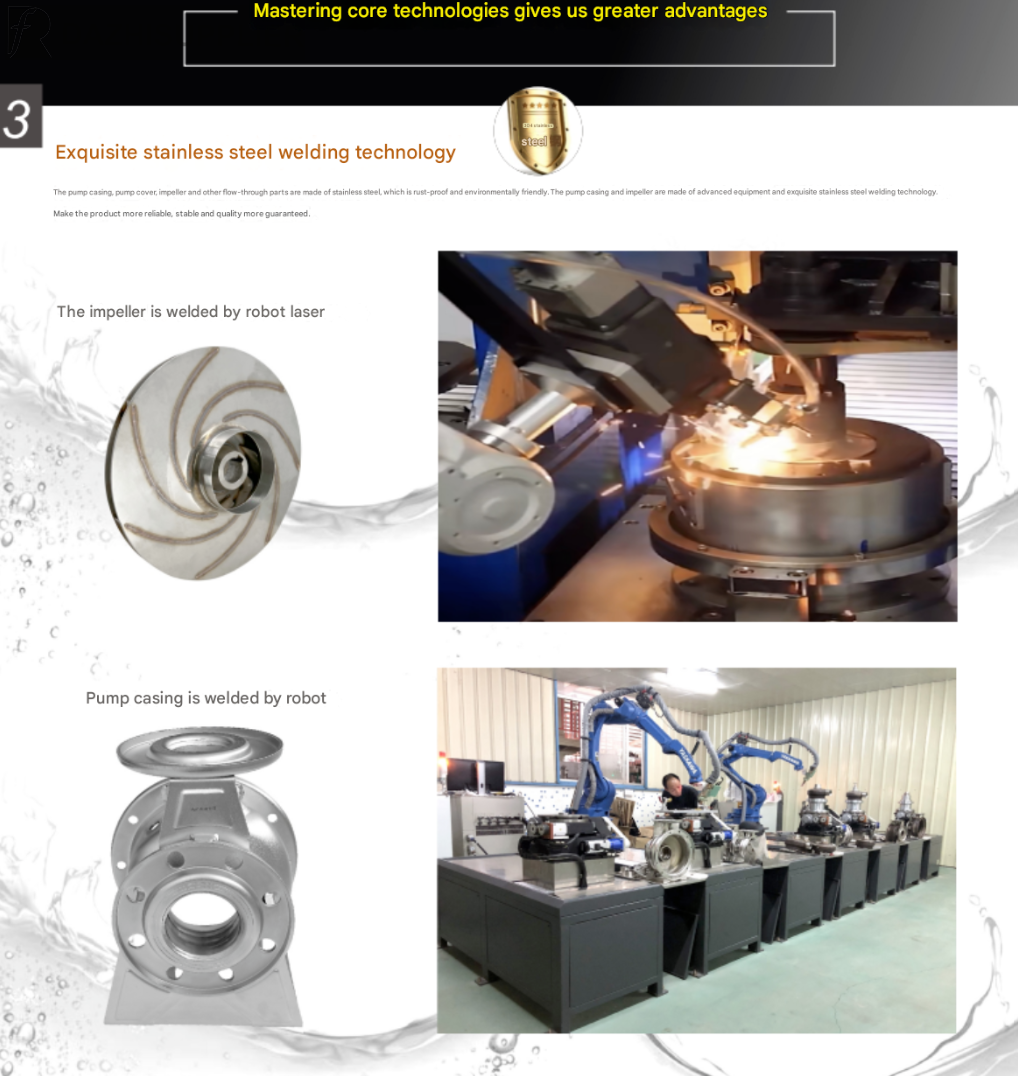

Middle Section and Impeller Material: Stainless Steel
Operating Conditions:
Medium Temperature:
Low Temperature Type (-20~+70℃)
Normal Temperature Type (+15~+70℃)
High Temperature Type (+70~+104℃)
Ambient Temperature: ≤50℃
Maximum Operating Pressure: 1.0MPa

Brand: dazhi

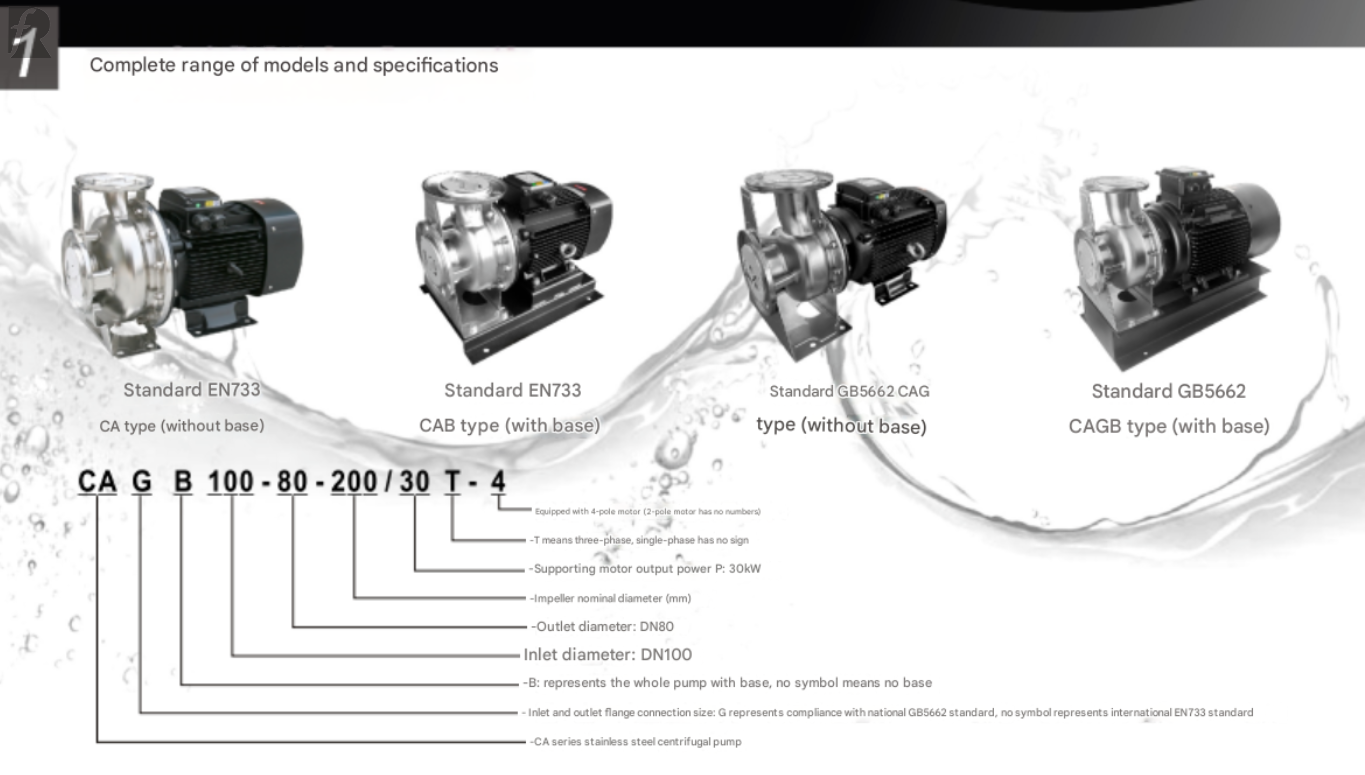

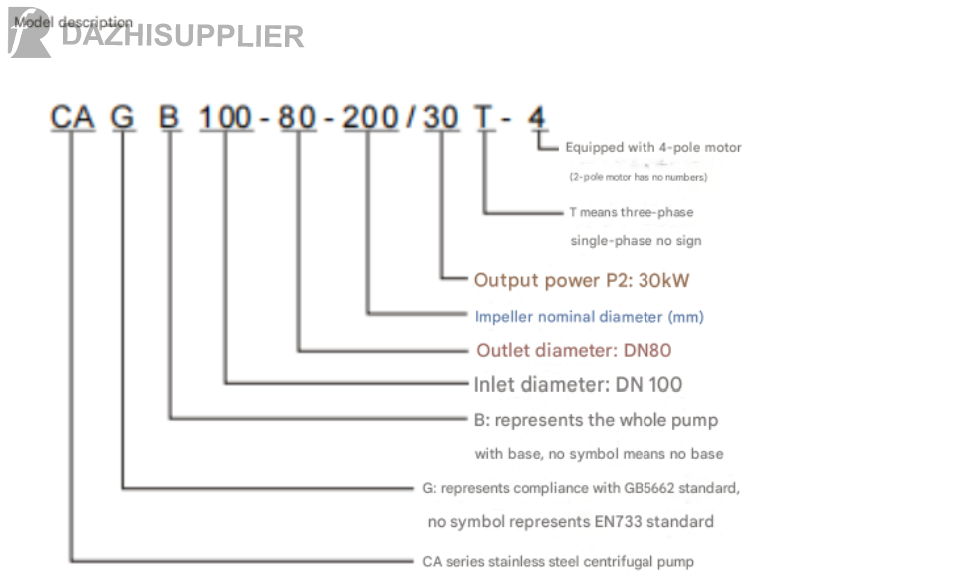

Model: CA100 Series

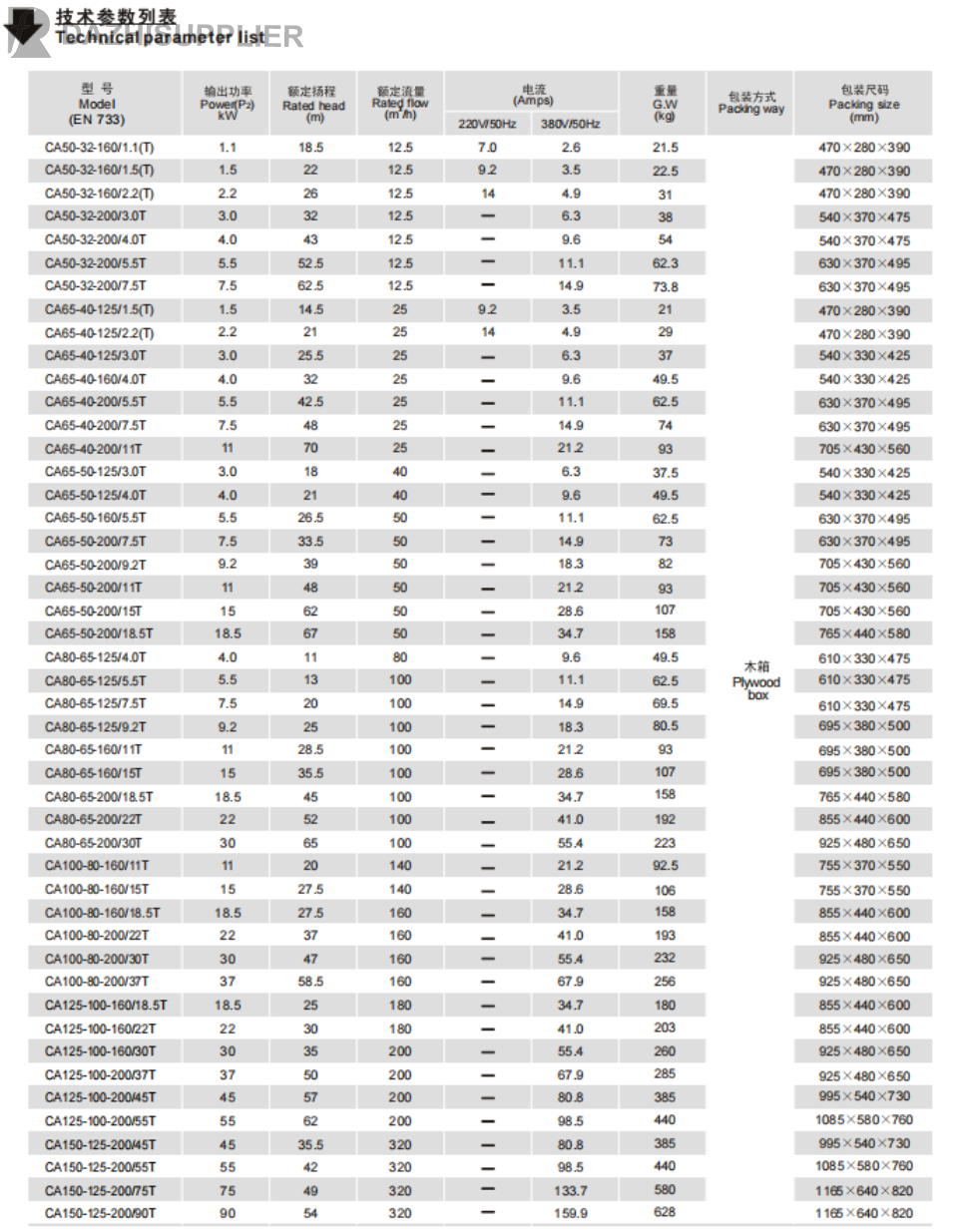

Output Power: 11kw-37kw
Power Supply Parameters: 380v / 50Hz

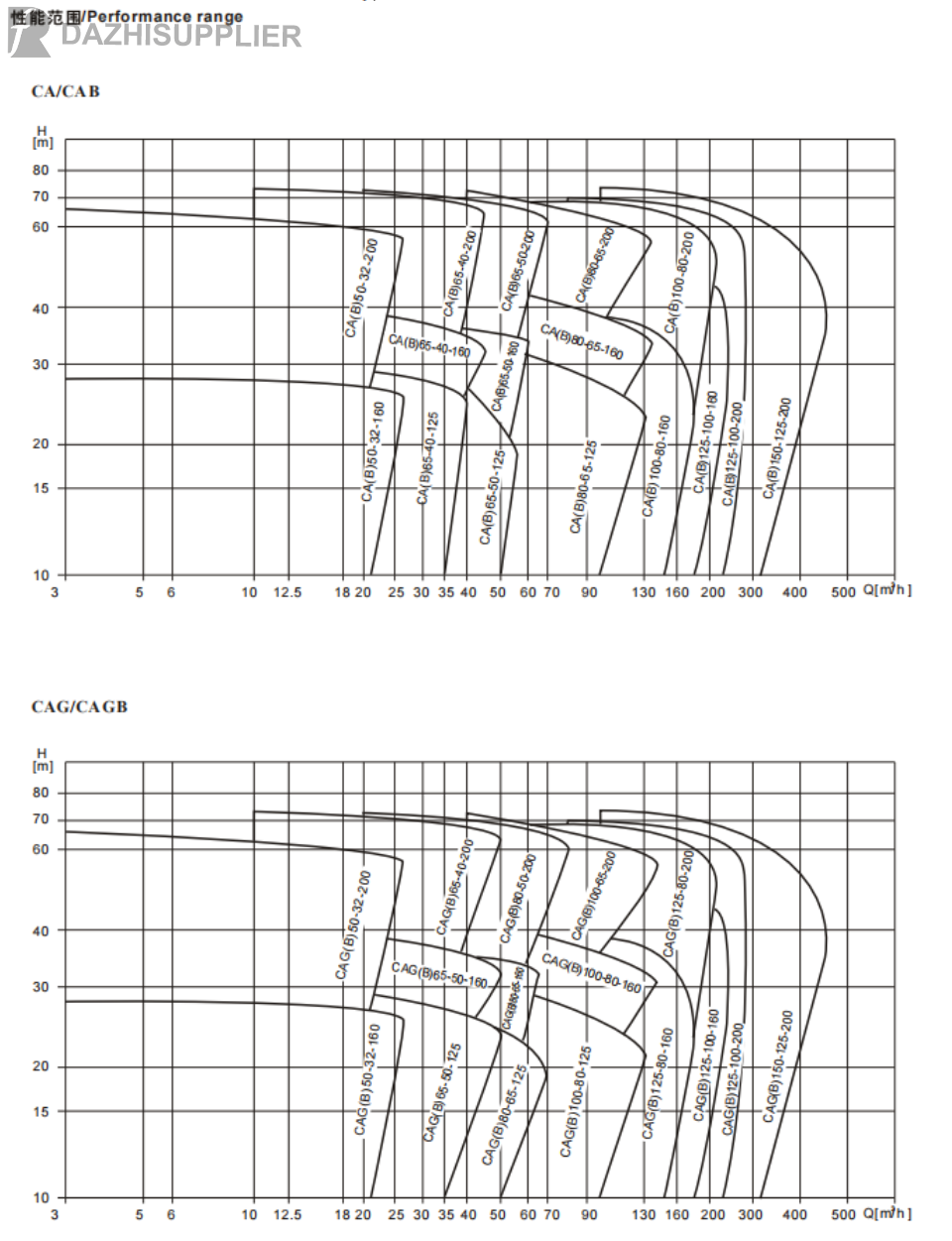

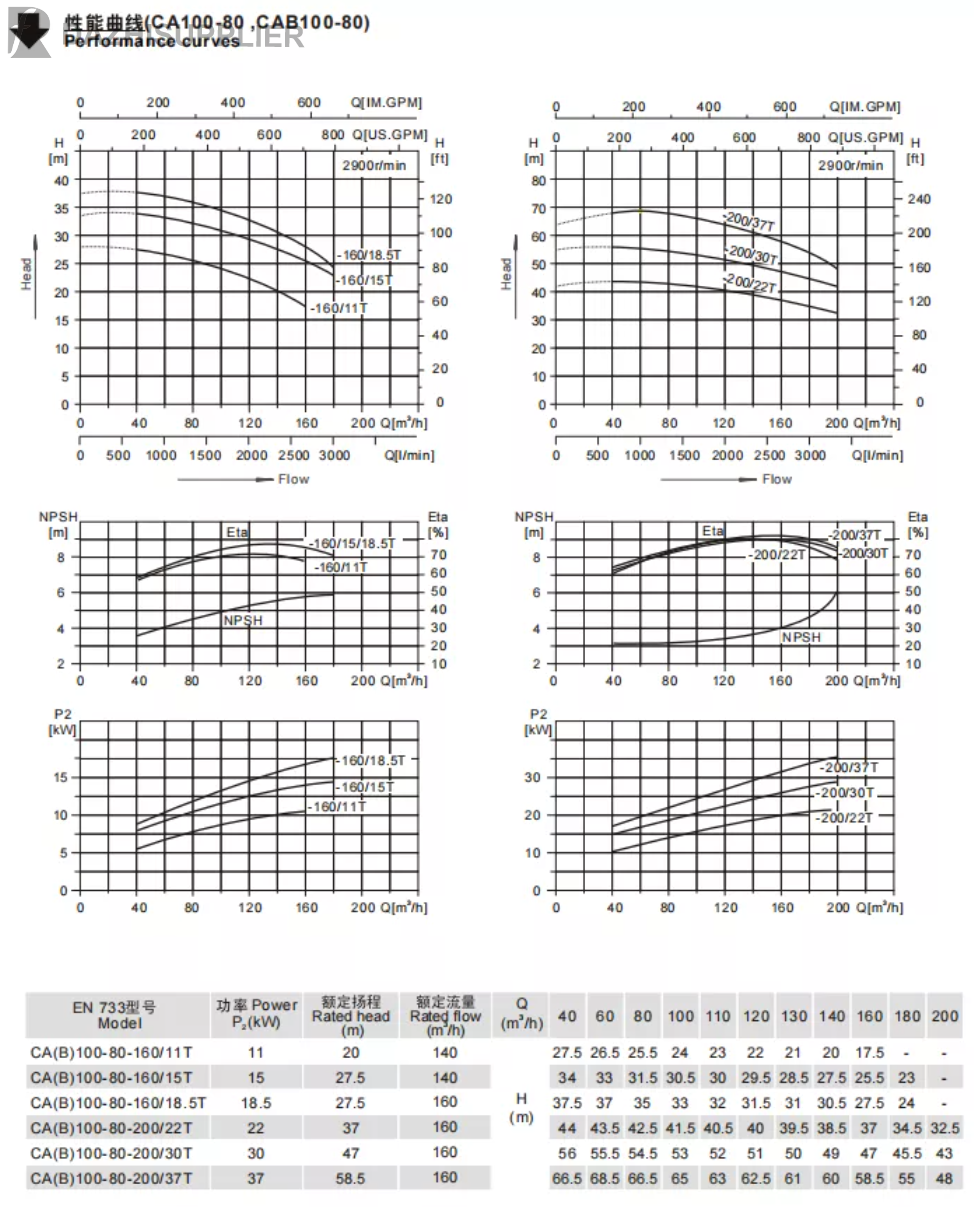

Rated Head: 15m-54m

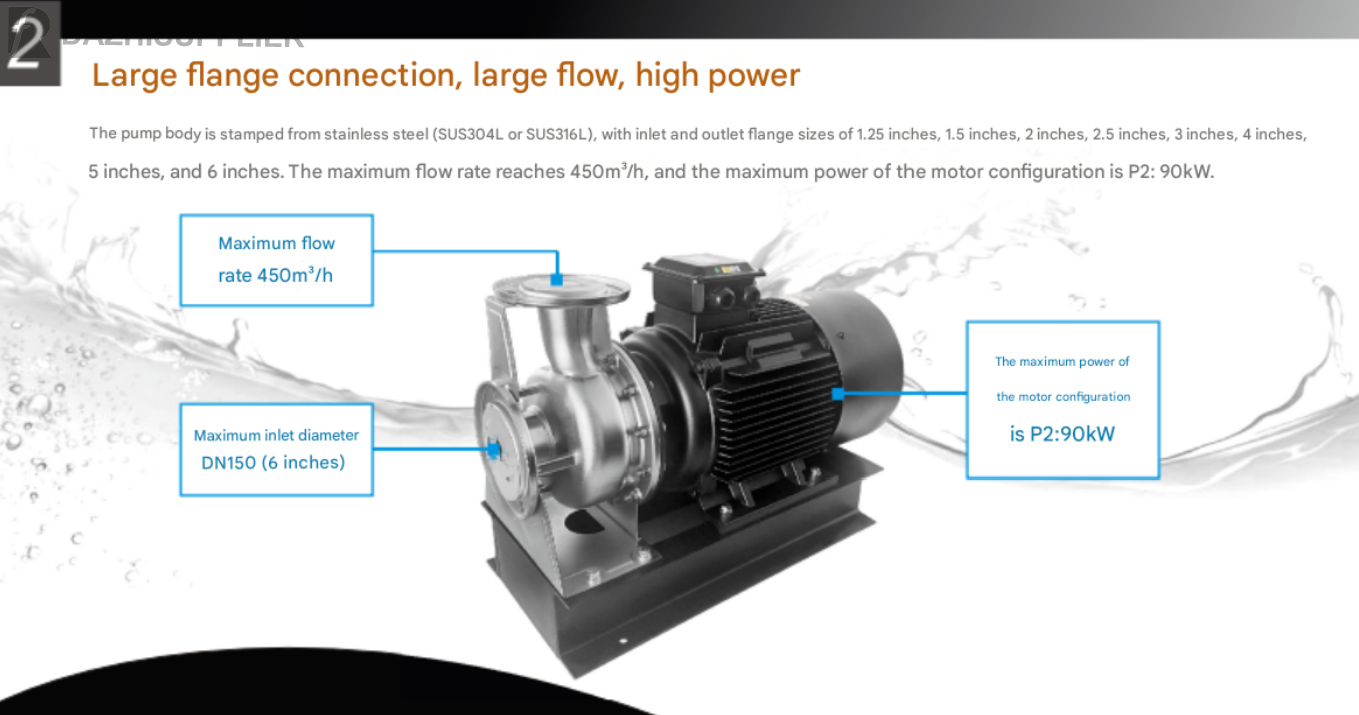

Rated Flow: 160m³/h
