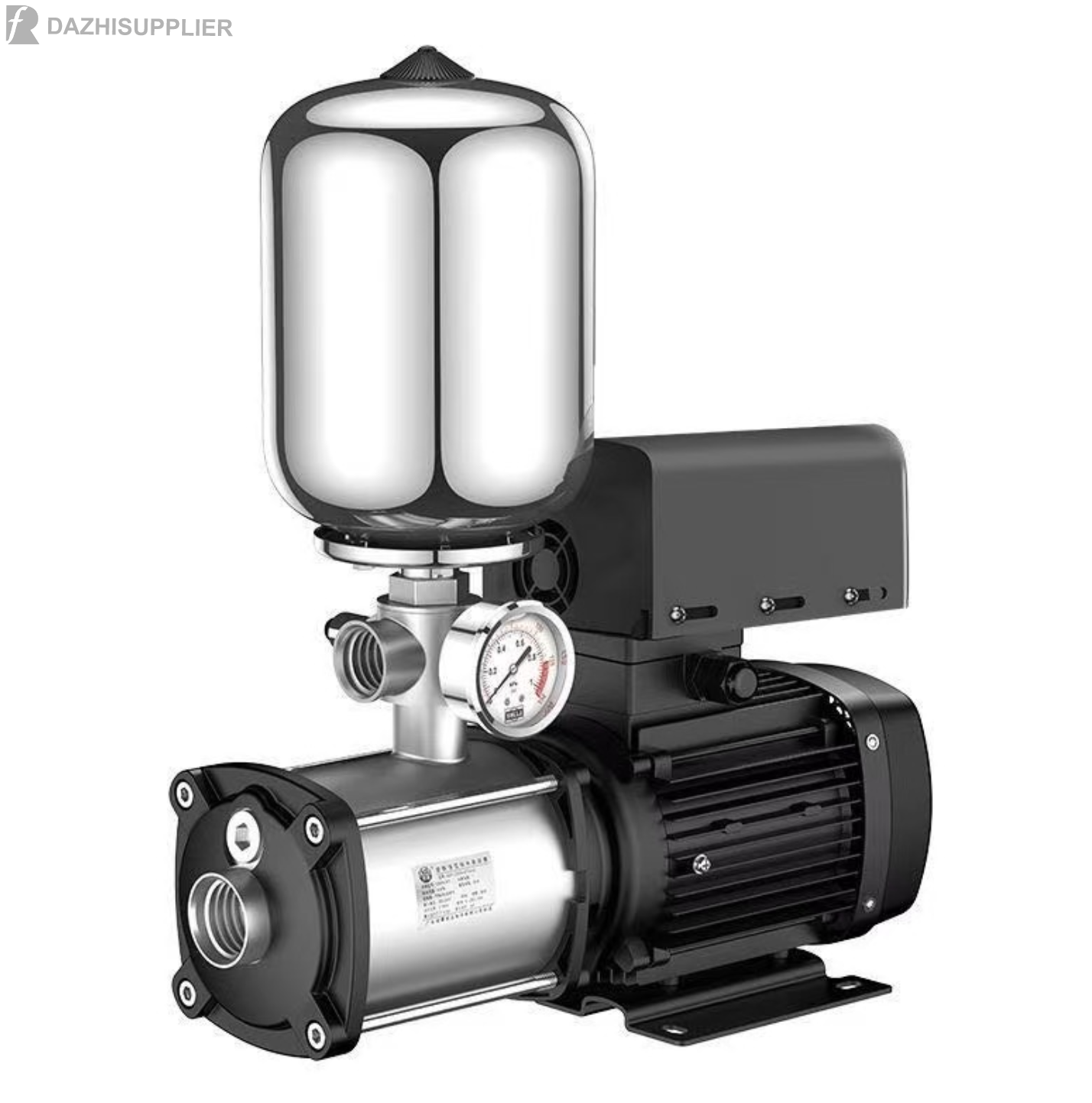

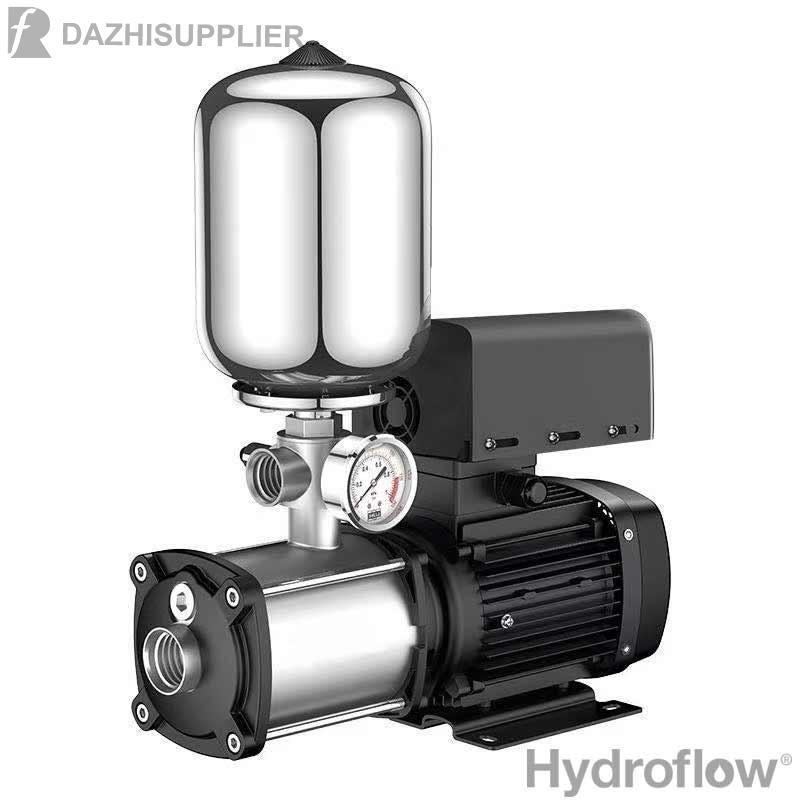

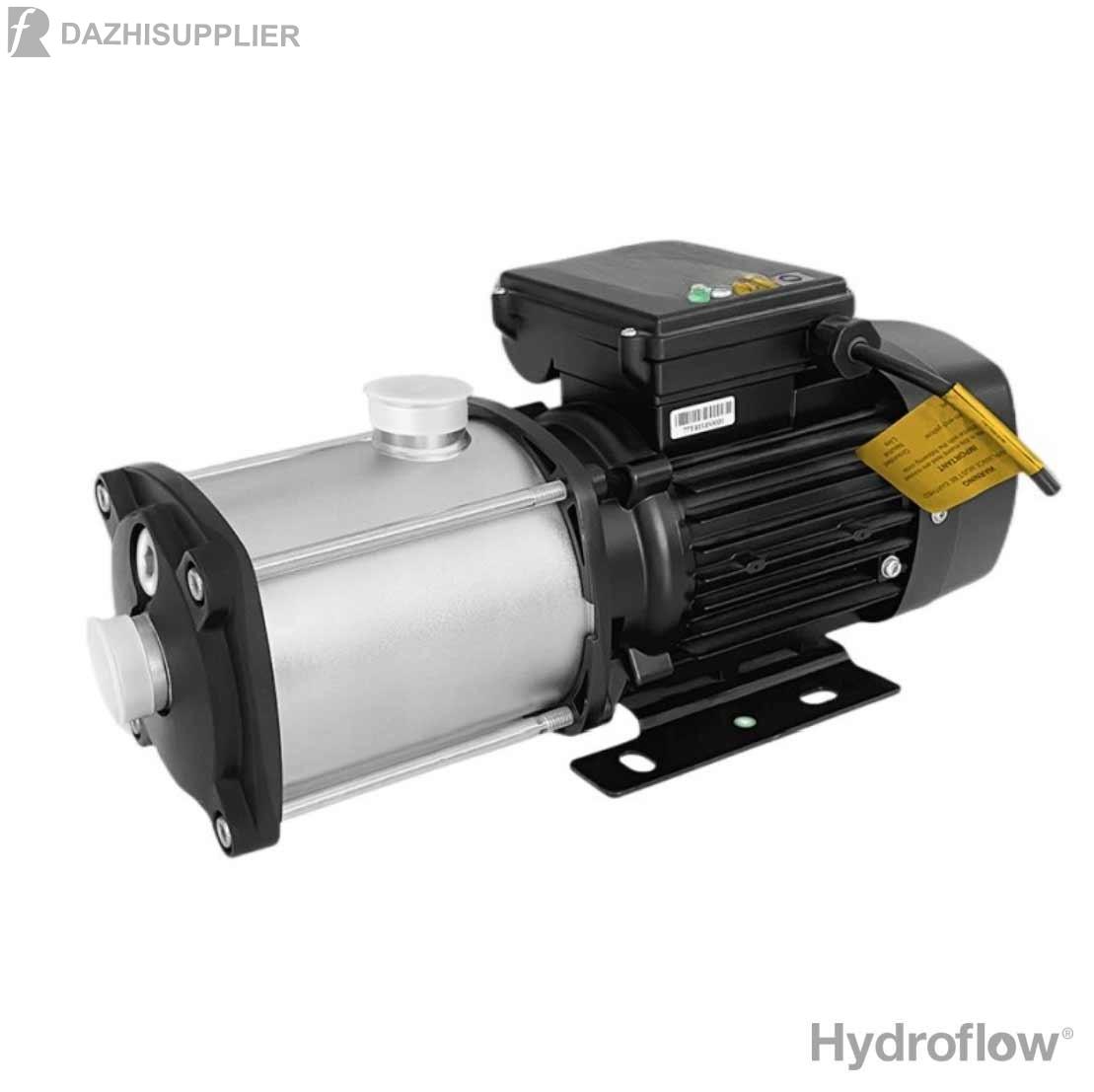

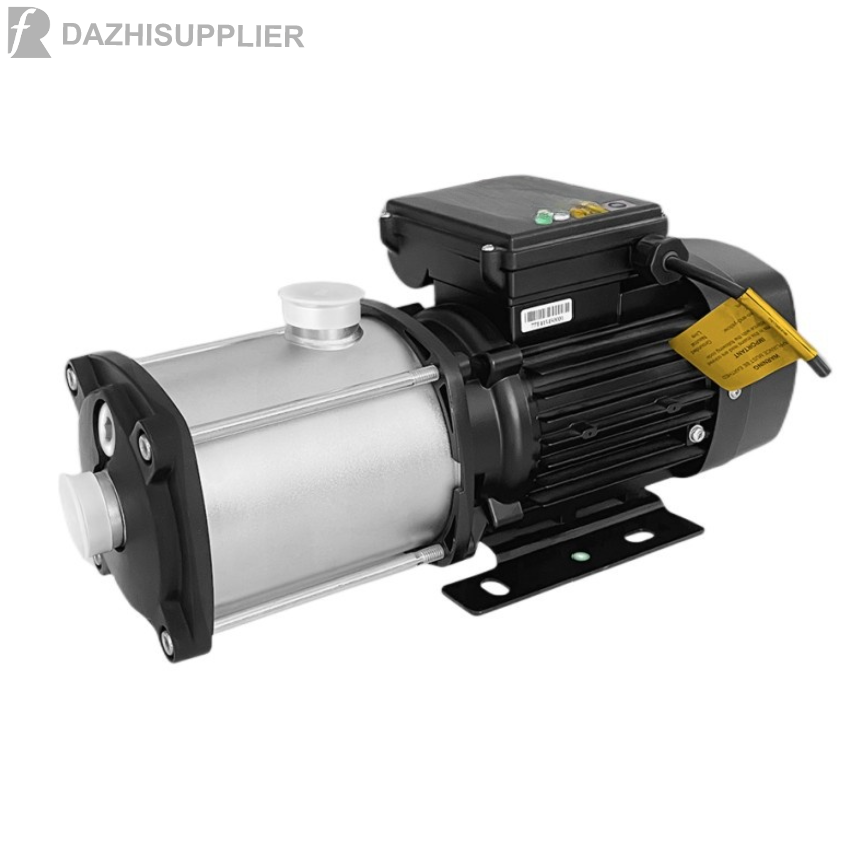

CMI5 Series

Product Features:Thermal
Protector: with thermal protector (single-phase motor)
Insulation Class: Class F
Protection Level: IP55
Middle Section and Impeller Material: Stainless Steel
Operating Conditions:
Medium Temperature:
Low Temperature Type (-20~+70℃)
Normal Temperature Type (+15~+70℃)
High Temperature Type (+70~+104℃)
Ambient Temperature: ≤50℃
Maximum Operating Pressure: 1.0MPa

Brand: dazhi
Model: CMI5 Series
Output Power: 0.37kw-1.1kw
Power Supply Parameters: 220v & 380v
Rated Head: 13m-45.5m
Rated Flow: 5m³/h
