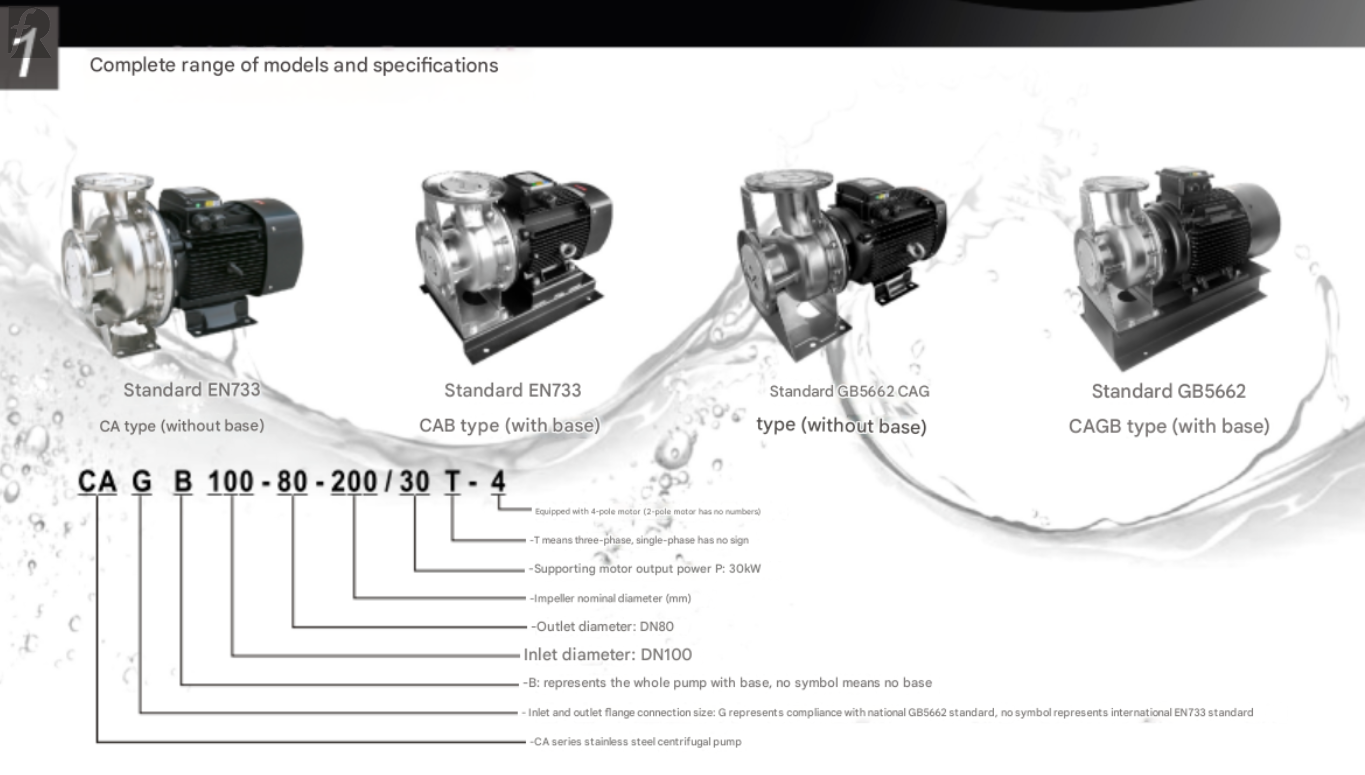

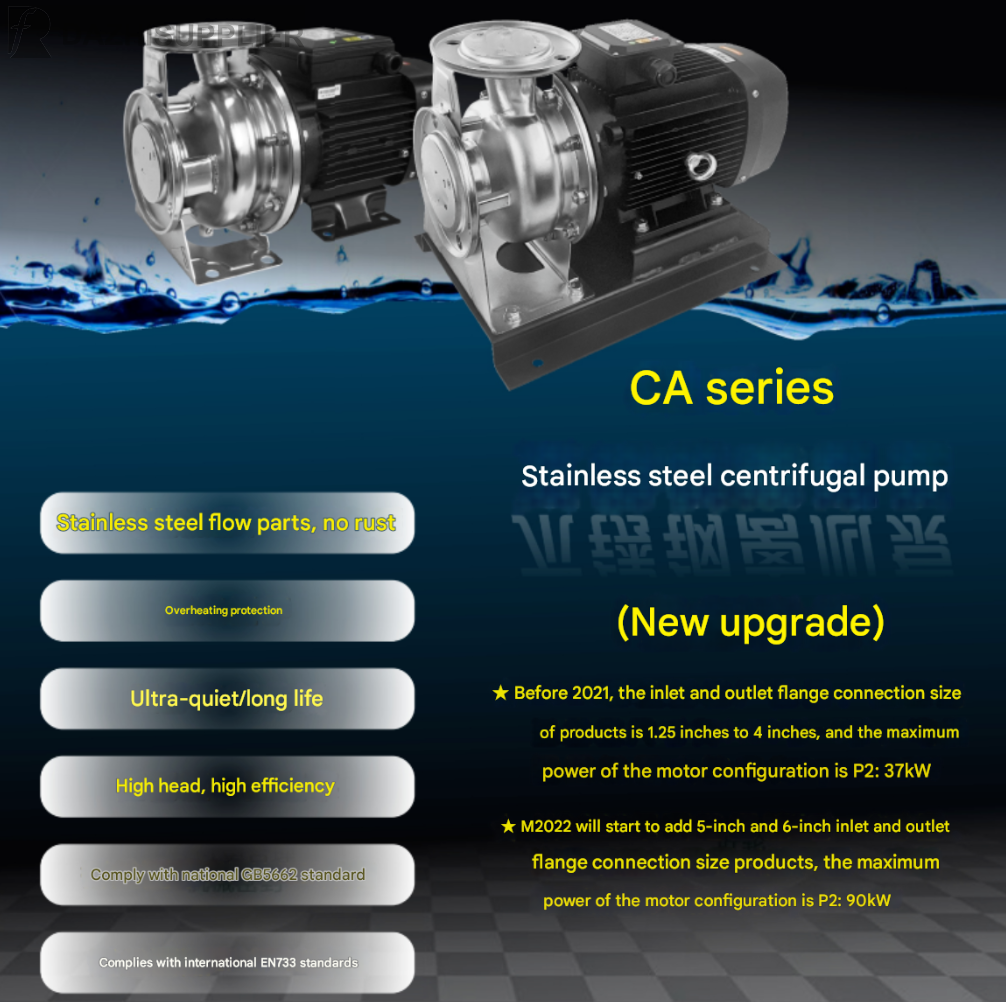

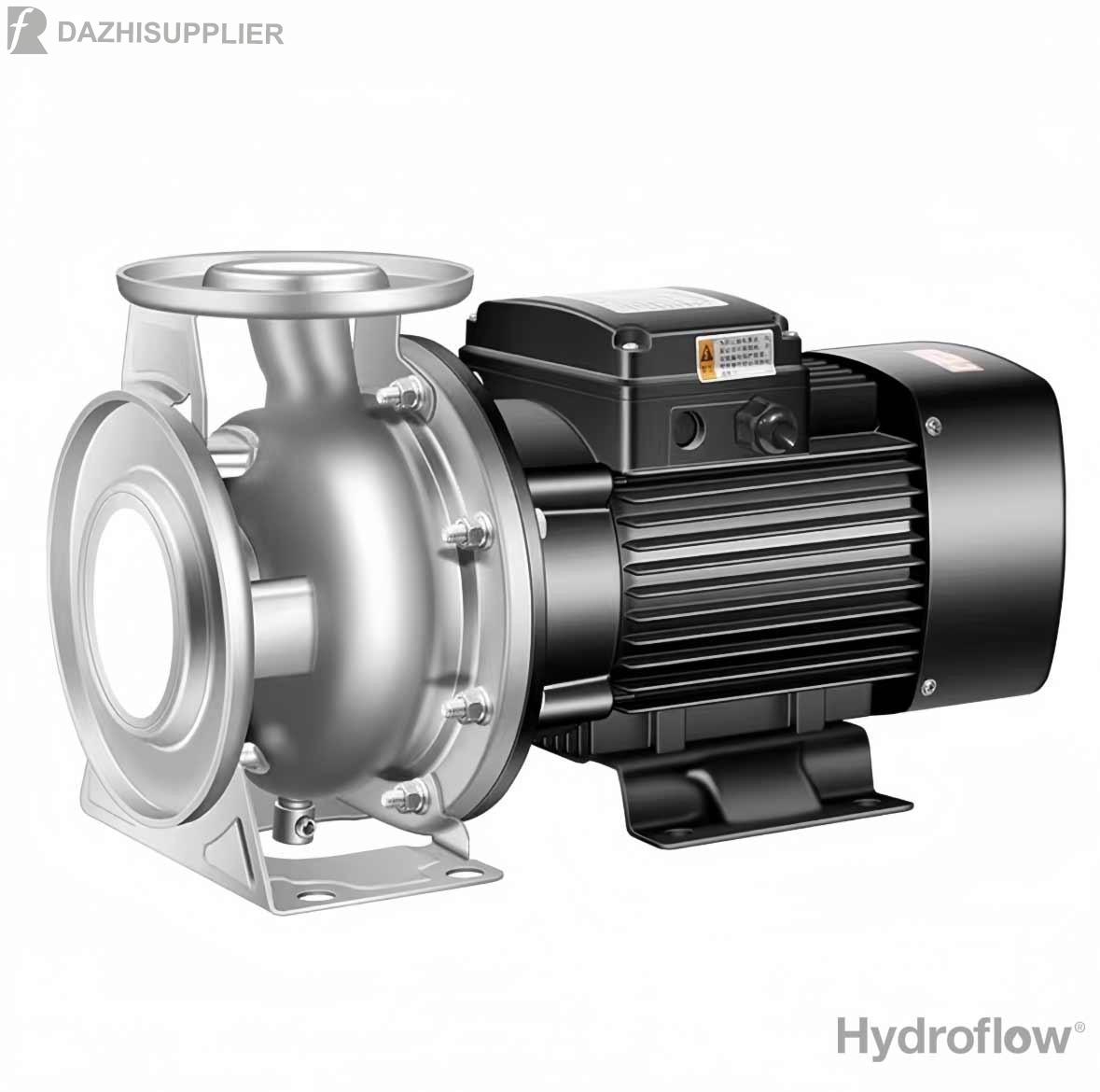

CA50 Series

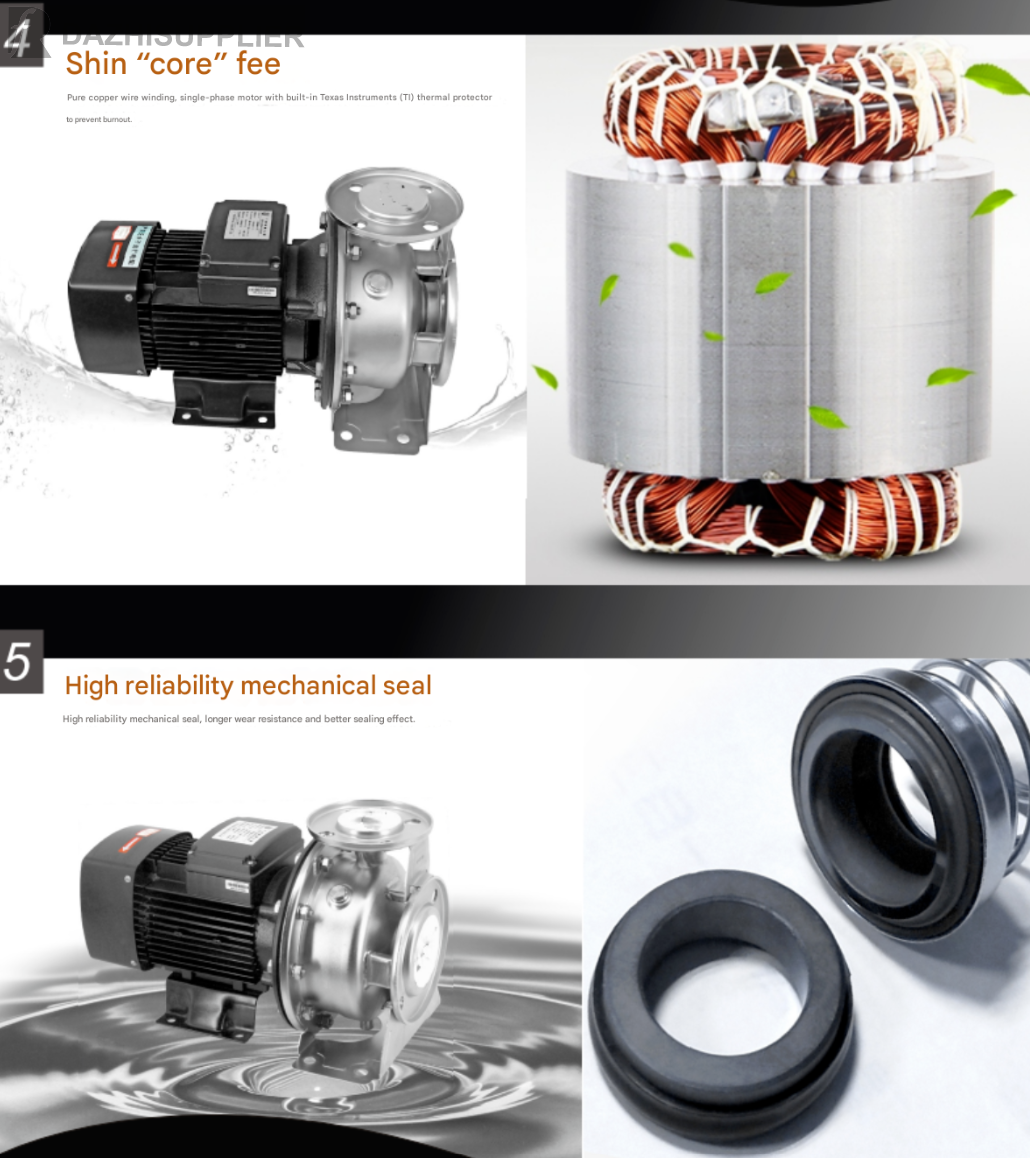

Product Features:Thermal
Protector: with thermal protector (single-phase motor)
Insulation Class: Class F
Protection Level: IP55

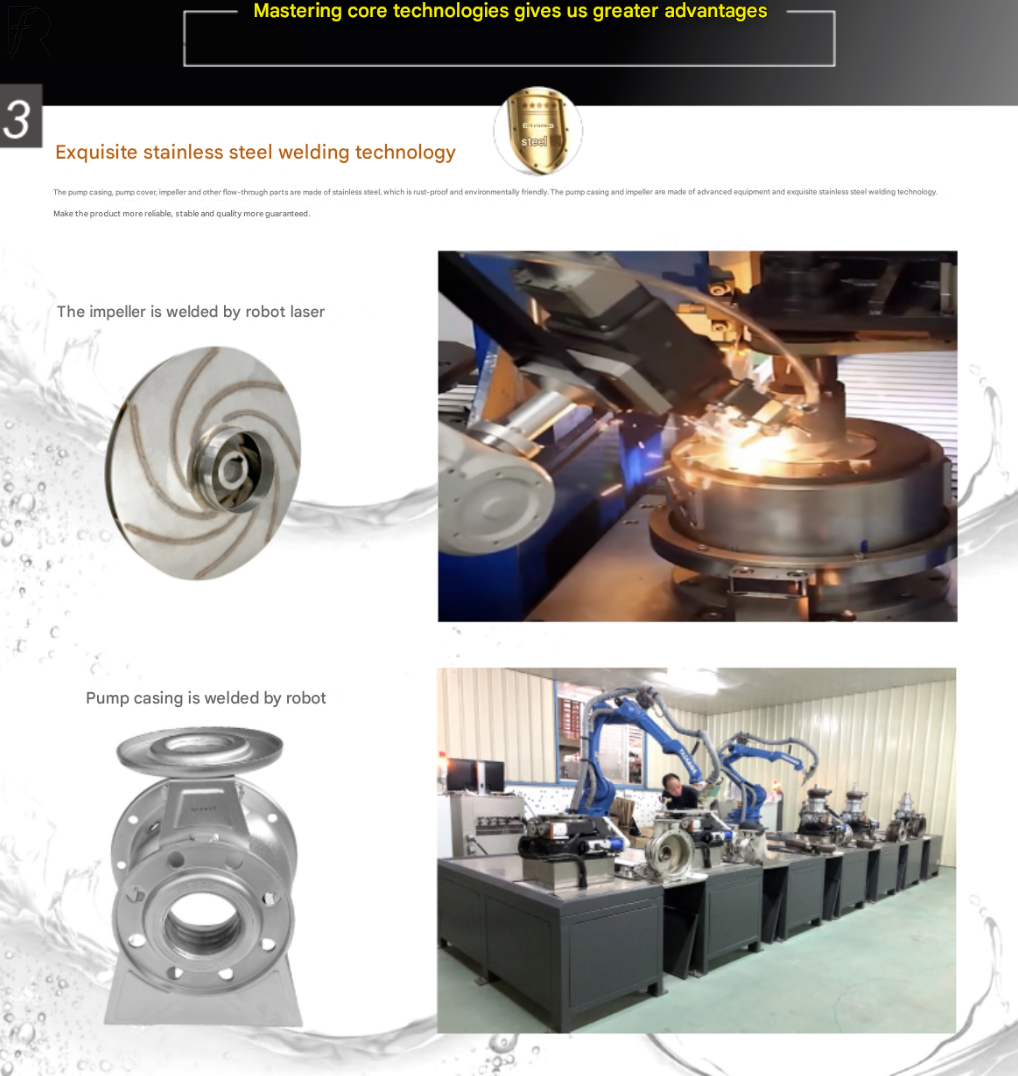

Middle Section and Impeller Material: Stainless Steel
Operating Conditions:
Medium Temperature:
Low Temperature Type (-20~+70℃)
Normal Temperature Type (+15~+70℃)
High Temperature Type (+70~+104℃)
Ambient Temperature: ≤50℃
Maximum Operating Pressure: 1.0MPa

Brand: dazhi

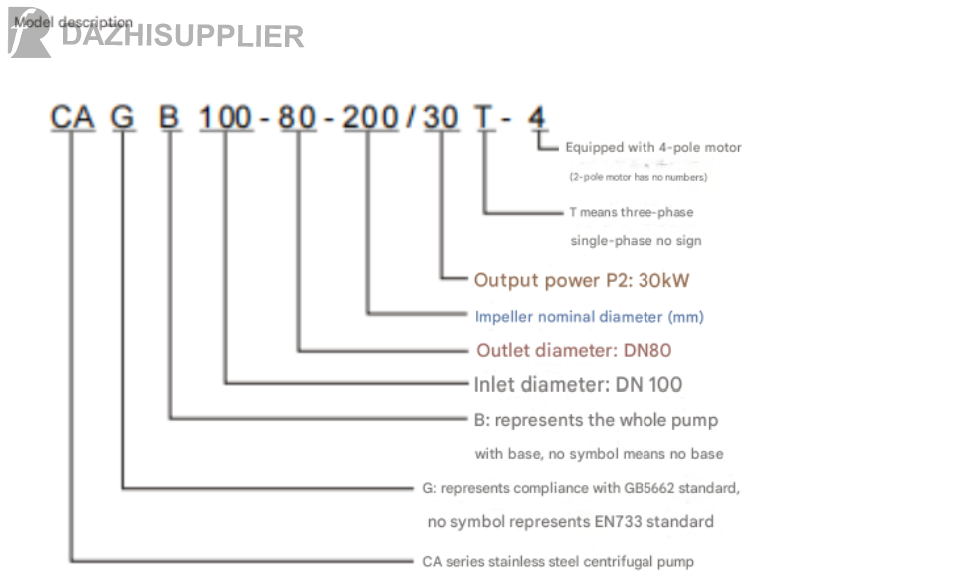

Model: CA50 Series
Output Power: 1.1kw-7.5kw
Power Supply Parameters: 380v / 50Hz

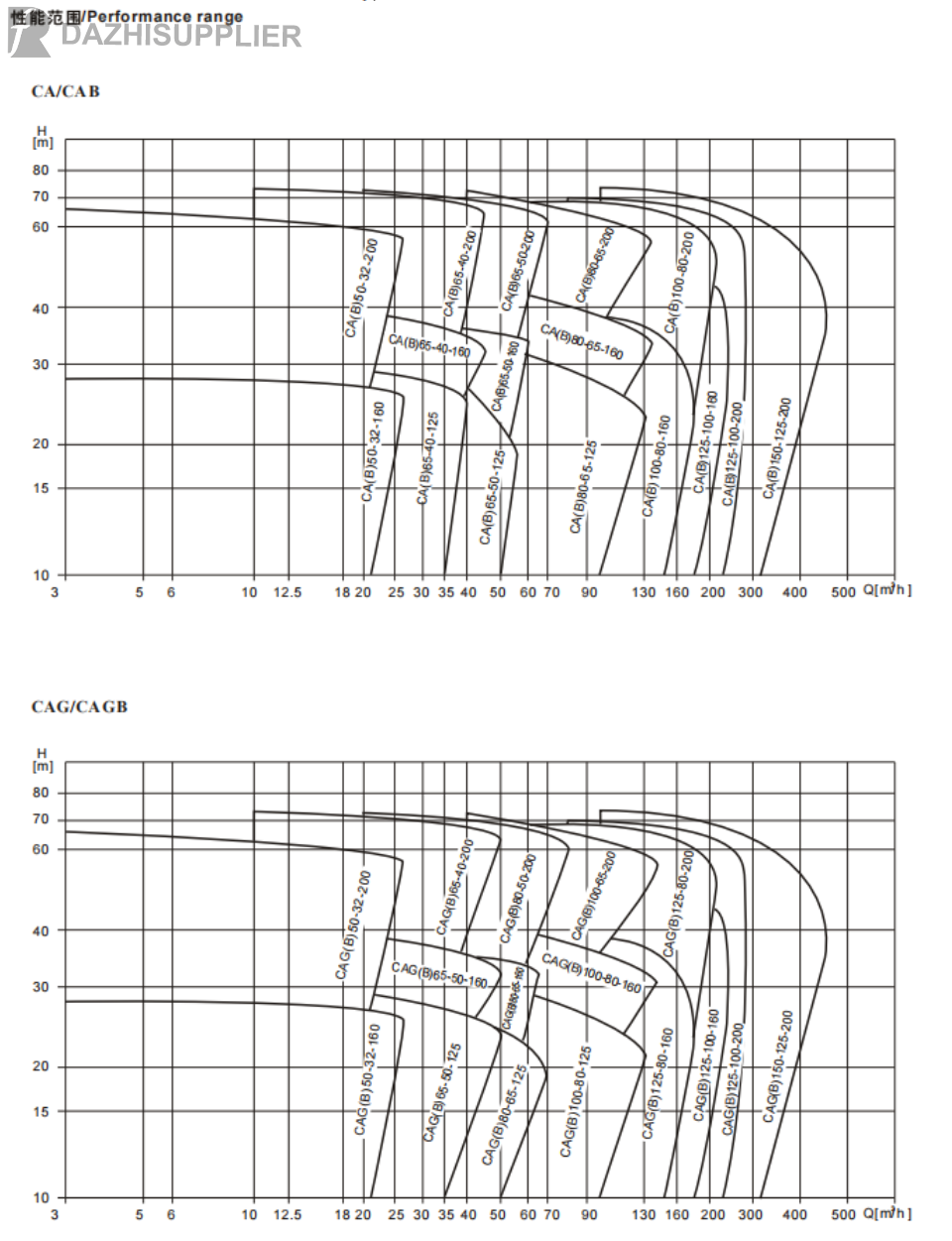

Rated Head: 16.5m-63m
Rated Flow: 12.5m³/h
